Delft (ZH): Nieuwe
Kerk or St. Ursula
on Delft's second parish church started in 1381, when a temporary
wooden church was built. Around this, a stone church was built
starting from 1384. First the transept and the choir were built.

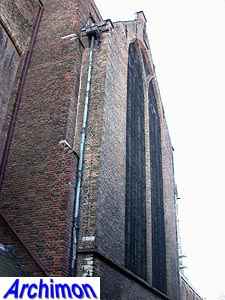

This part of the work was finished in ca. 1390. The west wall
of the transept is bent, probably because the workers had to
build around the altars of the wooden church, which were not
to be moved. It seems that choir and transept were intended to
have stone vaults., but sagging of the church probably was the
reason why this was never fulfilled.

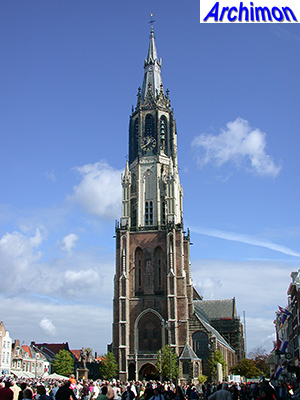

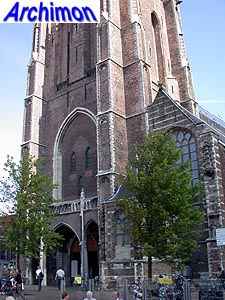

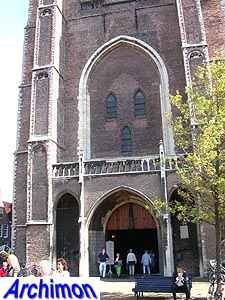

In 1390 work on the tower began, which continued until 1412,
when the square lower part was completed. The now empty niches
originally had natural stone traceries.

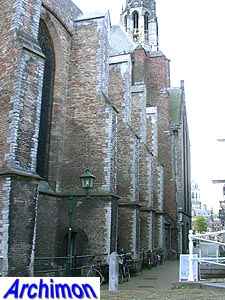

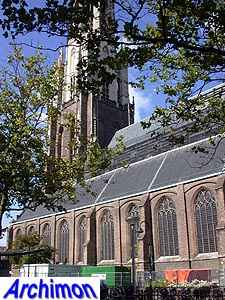

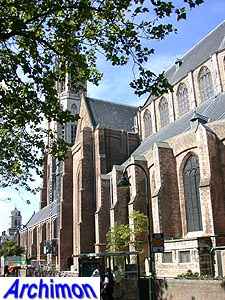

After work on the tower had stopped the construction of the nave
began, which lasted until 1435. Today the side-aisles each are
a single space, but originally each travel was a chapel. This
was changed after the great fire of 1536. Traces of the old situation
are still visible inside the church. Also, each trave originally
had a roof of its own, instead of the single roof that now covers
an entire side-aisle.

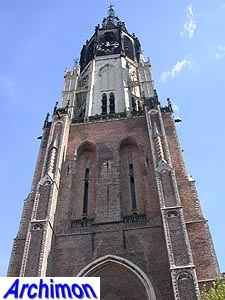

In 1432 work on the tower continued with the construction of
the lower half of the first octagonal segment. Instead of brick
on the outside this was covered with white Lede-stone. In 1441
the turrets at the corners of the square lower segment were added,
. In 1447 work on the tower again was stopped.

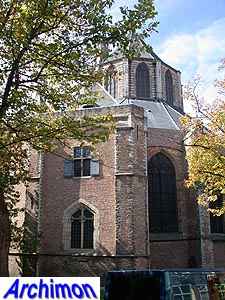

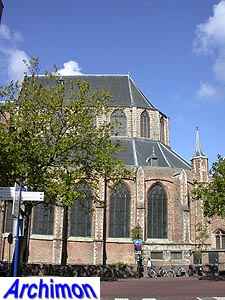

Work on a new choir started in 1453, beginning with a new ambulatory.
The old choir was replaced starting from 1461, and the new one

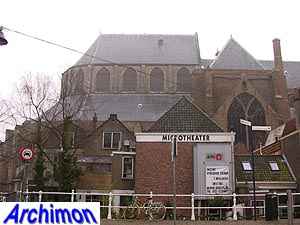

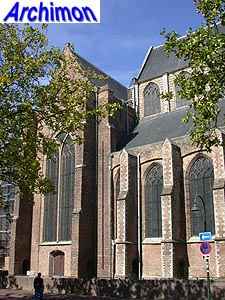

was finally completed in 1476. The choir is notably taller than
the nave and is a rare example of classic Gothicism in the Netherlands,
having been built under the leadership of Jacob van der Burch,
who was also responsible for much of Utrecht Cathedral. Like

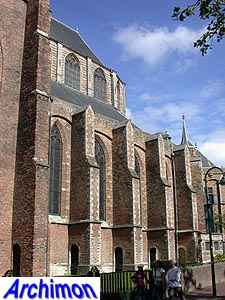

the Oude Kerk, the choir is supported by buttresses with arches

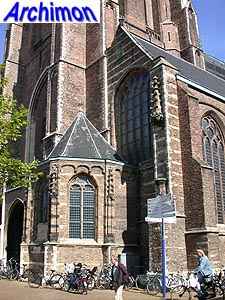

The southern aisle was extended with three traves along the tower

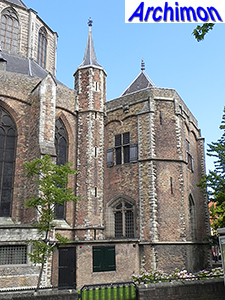

in ca. 1485 and completed with a baptistry. In 1510 the northern
transept-arm was lengthened with a chapel dedicated to Mary.

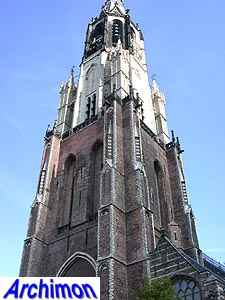

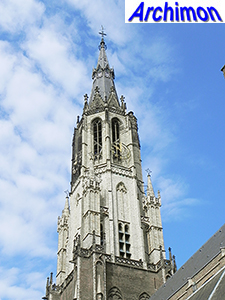

In 1494 work on the tower again continued, with the construction
of a second octagonal segment, this time made of yellow Bentheimer
sandstone, although this has weathered through the centuries
and now has a blackish tint in some places. This stone had been
delivered already in 1486, but out of fear that the tower might
collapse under the weight of the stone it was not used for eight
years, until it was finally decided to give it a try. The second
octagonal segment was finished in 1495, followed by an apple-shaped
spire a year later. This spire was lost in the fire of 1536,
and replaced by another one, which itself burnt down in 1872.
The current spire dates from 1875 and was designed by P.J.H.
On May the third of 1536 a flash of lightning hit the tower,
resulting in a fire that not only severely damaged the two big
churches, but also destroyed most of the town. Rebuilding the
church was quickly started, but in a rather provisional manner.
The natural stone traceries were renewed in brick. The usable
surviving bits were used for balustrades. Pillars were repaired
in such a primitive way that its a miracle the church never collapsed.
During a restoration from 1923 until 1939 these were replaced.

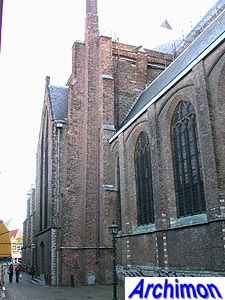

Also three new heavy buttresses were added to the leaning wall
of the southern transept arm.
Initially the church was consecrated St. Mary, and since 1404
St. Ursula. With the iconoclastic riots of 1566 all building
activities ended. Shortly after that the catholic history of
the church ended as well, as early in the 80-years War the protestants
confiscated the church and removed most of the catholic furnishing
and simply renamed the church New Church. The choir has since
become the mausoleum of the Orange family. The first Orange buried
here was Prince Willem I, who initiated the war against Spain.
His tomb was designed by Hendrick
